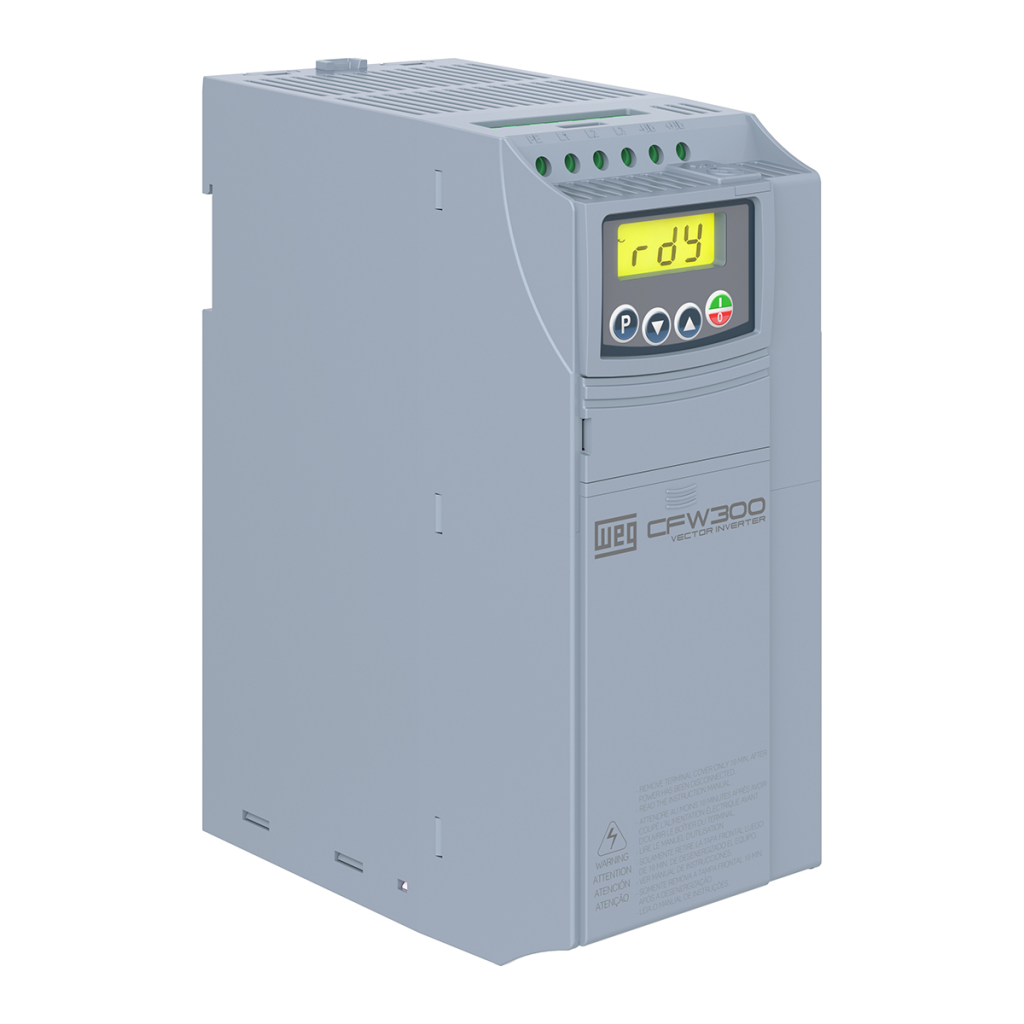

The CFW300 variable speed drive is a high-performance VSD for three-phase induction motors, ideal for applications on machines or equipment that require precise control and easy operation.It features compact size, contactor-style electrical instalation, selectable WEG vector control (VVW) or scalar control (V/F), built-in operating interface (HMI), SoftPLC, free WPS programming software and plug-in accessories that may be added to provide extended functionalities, making it a flexible solution of excellent cost effectiveness.
Product features
| Power supply | 380-480 V |
|---|
| Input phases | Three-phase |
|---|
| Rated current (ND) | 12 |
|---|
Inverters
| Control method - induction motor | V/f (escalar) and VVW |
|---|
| Rated efficiency | ≥ 97% |
|---|
| Link Inductor | No |
|---|
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
|---|
| SoftPLC | Yes, incorporated |
|---|
| Temperature | 0 °C a 40 °C |
|---|
| USB port | Yes, by CFW300-CUSB |
|---|
| Memory card | Not included in the product |
|---|
| I/O standard | 4 x DI; 1 relé NA/NF x DO; 1 x AI; Somente com plug-in x AO. |
|---|
| Display | Numeric LCD |
|---|
| Rated current (HD) | 12 |
|---|
| Enclosure | IP20 |
|---|
| Dynamic braking | Standard with braking |
|---|
